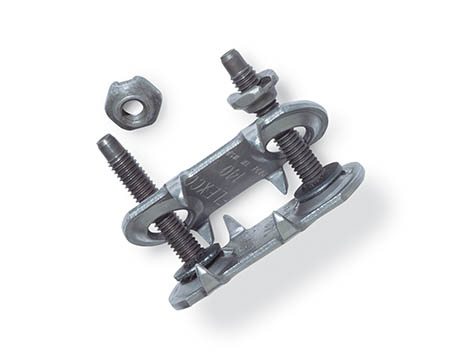

Flexco® Size 140 Available in various metal options, Flexco® Bolt Solid Plate Fastening System Size 140 also comes in VP™, featuring a rubber-covered top plate for increased impact protection and conveyor component compatibility. Fastener Details Design: Solid plate; piloted bolts with tapered tips Belt Thickness: 3/16” to 7/16” (5 mm to 11 mm) Minimum Pulley Diameter: 14” (360 mm) Maximum PIW: 225 (40 kN/m) Belt Widths: 12”, 18”, 24”, 30”, 36”, 42”, 48”, 54”, 60”, 72” (300 mm, 450 mm, 600 mm, 750 mm, 900 mm, 1050 mm, 1200 mm, 1350 mm, 1500 mm, 1800 mm) Metal Selection: Stainless Steel, MegAlloy®, VP™ rubber covered balance steel, VP™ rubber covered MegAlloy®, Promal®, Everdur Installation Method: Hammer or power tool and templet
🔧
Detalii despre sistemul de prindere:
- Design: Placă solidă; șuruburi ghidate cu vârfuri conice
- Grosimea benzii transportoare: 5 mm – 11 mm (3/16” – 7/16”)
- Diametrul minim al tamburului: 360 mm (14”)
- Rezistență maximă la rupere (PIW): 225 PIW (echivalent 40 kN/m)
-
Lățimi disponibile pentru bandă:
300 mm, 450 mm, 600 mm, 750 mm, 900 mm, 1050 mm, 1200 mm, 1350 mm, 1500 mm, 1800 mm
(echivalent: 12”, 18”, 24”, 30”, 36”, 42”, 48”, 54”, 60”, 72”) -
Opțiuni de material:
- Oțel inoxidabil
- MegAlloy®
- Oțel echilibrat acoperit cu cauciuc VP™
- MegAlloy® acoperit cu cauciuc VP™
- Promal®
- Everdur
- Metodă de instalare: Cu ciocan sau unealtă electrică + șablon de montaj
